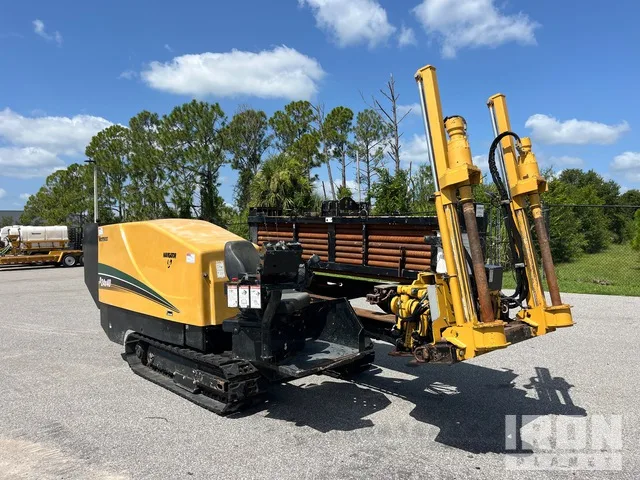

2016 Vermeer D24X40 S3

Overview

Year
2016
Make
Vermeer
Model
D24X40 S3
Hours
4,080 hrs
Category
Drills
Stock #
A5355791
Serial #
1VRX200FXG1000153
Location
, FL

Description

This 2016 Vermeer D24X40 S3 directional drill is on the ground in Florida. The meter stood at 4,080 hours when the listing was written. That figure can move while machine sits on the yard, so ask us for a current one before you commit.

Manufacturer reference figures give an engine rated at 125 hp and a max carriage speed of 120 fpm. It also lists a max thrust force of 24,000 lbs and a bore diameter of 4.75 in. Reference values vary with configuration - check the ones that matter to your job before you buy.

Also listed: Requires Diesel Exhaust Fluid, Open Operator Station and Drill Rod Loading System.

You will find it under stock A5355791 with serial 1VRX200FXG1000153. Ask us for photos, an inspection slot or a delivered price to your site.

Features & options

  • Open Operator Station
  • Tier 4
  • 2015 US EPA Label
  • John Deere 4.5 L Diesel Engine
  • Requires Diesel Exhaust Fluid
  • Drill Rod Loading System
  • 45 Drill Rods
  • 16 in Track Shoes w/Rubber Pads

Specifications

Engine Power125 hp
Fuel Tank Capacity50 gal
Max Spindle Torque4,000 ft-lb
Max Spindle Speed240 rpm
Max Carriage Speed120 fpm
Max Pullback Force24,000 lbs
Max Thrust Force24,000 lbs
Entry Drill Angle10-14 degrees
Bore Diameter4.75 in
Rod Diameter2.38 in
Rod Length10 ft
Weight20,000 lbs
Length203 in
Width91 in
Height73 in
Serial Number / VIN1VRX200FXG1000153
Hour Meter / Odometer4080 hrs
Travel AlarmOperational
HornOperational
Seat BeltsOperational
Safety Lock Out/StopOperational
Current Safety ManualNo
Current Operator/Maintenance ManualNo
Engine Oil PressureThe gauge registers in the operating range.
Warning LightsOperational
GaugesOperational
Limited Function CheckThe main components are in place and operational as noted. The unit has no remote control.
Emissions Status2015 US EPA Label
Blow-by (subjective visual observation)Video capture could not be performed
StarterOperational

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in , FL

Delivered to your site for a flat $550 anywhere in the contiguous US.
