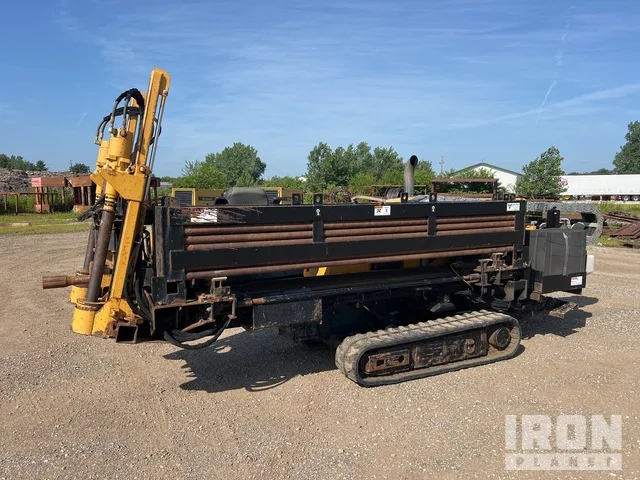

2012 Vermeer D20X22II

Overview

Year
2012
Make
Vermeer
Model
D20X22II
Hours
2,284 hrs
Category
Drills
Stock #
A3997645
Serial #
1VR6180T8C1000701 / 16JF01724W1031090
Location
, IL

Description

2012 Vermeer D20X22II directional drill w/1998 belshe T-18 trailer, available from our Illinois location. The meter stood at 2,284 hours when the listing was written. That figure can move while machine sits on the yard, so ask us for a current one before you commit.

The published figures list an operating weight of 11,660 lb and an engine rated at 83 hp. It also lists Diesel fuel and a maximum carriage speed of 120 ft/min. Those are reference values for the model and can vary by configuration, so confirm anything critical with us first.

Fitted equipment includes Drill Rod Loading System, Lunette Ring and T/A Trailer.

You will find it under stock A3997645 with serial 1VR6180T8C1000701 / 16JF01724W1031090. Ask us for photos, an inspection slot or a delivered price to your site.

Features & options

  • Open Operator Station
  • 2011 US EPA Label
  • Kubota V3800-D1-ET09 4 Cylinder 61.6 kW 3.8 L Diesel Engine
  • Drill Rod Loading System
  • 41 Drill Rods
  • 12 in Rubber Tracks
  • T/A Trailer
  • Lunette Ring
  • Electric Brakes
  • 17 ft x 82 In. Main Deck

Specifications

Engine Power83 hp
Engine MakeKubota
Fuel TypeDiesel
Fuel Tank Capacity30 gal
Maximum Spindle Speed240 rpm
Maximum Spindle Torque2200 ft-lb
Maximum Thrust/Pullback20000 lb
Maximum Carriage Speed120 ft/min
Drill Rod Diameter2.06 in
Drill Rod Length10 ft
Bore Diameter3 in
Maximum Bore Length400 ft
Operating Weight11660 lb
Length16 ft
Width4.25 ft
Serial Number / VIN1VR6180T8C1000701 / 16JF01724W1031090
Hour Meter / Odometer2284 hrs
Safety Lock Out/StopOperational
Current Safety ManualNo
Current Operator/Maintenance ManualNo
Engine Oil PressureWarning light inoperable
Warning LightsOperational
GaugesOperational
Limited Function CheckThe main components are in place and operational as noted.
Emissions Status2011 US EPA Label
Blow-by (subjective visual observation)Video capture could not be performed
StarterOperational
Limited Function CheckThe engine started and ran.
Limited Function Check (Drivetrain-Track)The drivetrain was operational without a load.
Pumps (Hydraulics)Seepage

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in , IL

Delivered to your site for a flat $550 anywhere in the contiguous US.
