2024 Xcmg XGS85J1

Overview

Year
2024
Make
Xcmg
Model
XGS85J1
Hours
50 hrs
Category
Aerial Lifts
Stock #
A7811583
Serial #
XUG0260AERRL09668
Location
Edinburg, TX

Description

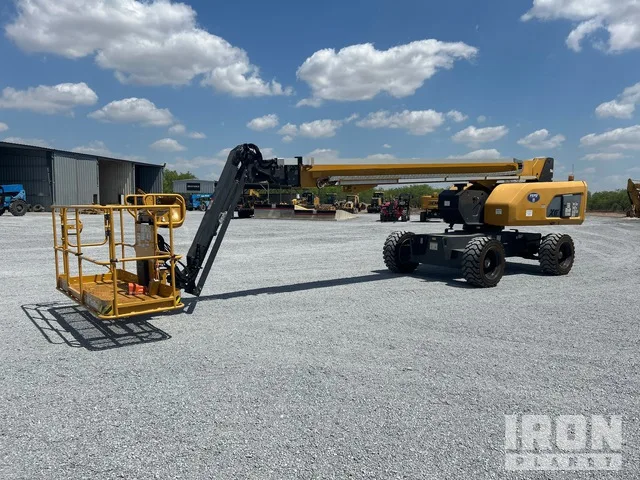

Here is a 2024 Xcmg XGS85J1 4WD diesel telescopic boom lift, in the yard in Edinburg, TX. The hour meter read 50 hours when it was listed. It may have changed since; we will confirm the figure as it stands today on request.

Working figures for this model are a platform height of 85 ft and a working height of 91 ft. Also on the sheet: an engine rated at 131 hp and a listed weight of 34,000 lbs. Those are reference values for the model and can vary by configuration, so confirm anything critical with us first.

Equipment on this one: 15-625 Tires, Jib, 661 lb Max Weight Capacity and CARB Compliant.

Stock A7811583, serial XUG0260AERRL09668. It ships from Edinburg, TX; get in touch for a freight quote or to book a viewing.

Features & options

  • 87 ft 11 in Max Platform Height
  • 661 lb Max Weight Capacity
  • Jib
  • Power to Platform
  • Tier 4
  • 2023 US EPA Label
  • CARB Compliant
  • Kubota V2607-CR-T-EW03 4 Cylinder 47 kW 2.6 L Diesel Engine
  • 15-625 Tires

Specifications

Engine Power131 hp
Displacement276 cu in
Maximum Working Height91 ft
Platform Height85 ft
Lift Capacity500 lbs
Horizontal Reach75 ft
Platform Size3 ft x 8 ft
Fuel TypeDiesel
Weight34,000 lbs
Transport Length36 ft
Transport Width8.5 ft
Transport Height10 ft
Ground Clearance1.5 ft
Serial Number / VINXUG0260AERRL09668
Hour Meter / Odometer50 hrs
Travel AlarmOperational
HornOperational
Swing BrakeOperational
Current Safety ManualYes
Current Operator/Maintenance ManualYes
ANSI GuidelinesNo
GaugesOperational
Oil PressureThe fault indicator shuts off after the engine oil pressure rises.
Warning LightsOperational
Limited Function CheckThe main components are in place and operational as noted.
Emergency Shut Off SwitchOperational
Engine Warning LightsOperational
Emissions Status2023 US EPA Label, CARB Compliant
Blow-by (subjective visual observation)No noticeable vapor or pressure
StarterOperational

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in Edinburg, TX

Delivered to your site for a flat $550 anywhere in the contiguous US.
