2022 Irock TC-20

Overview

Year
2022
Make
Irock
Model
TC-20
Hours
555 hrs
Category
Other Equipment
Stock #
A4113799
Serial #
10048100
Location
Birmingham, AL

Description

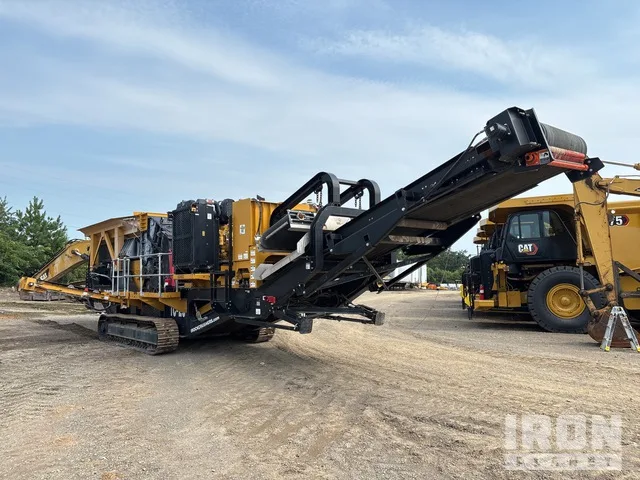

This 2022 Irock TC-20 tracked impact crusher plant is on the ground in Birmingham, AL. The meter stood at 555 hours when the listing was written. That figure can move while machine sits on the yard, so ask us for a current one before you commit.

Also listed: 48 in Wide Under Crusher Conveyor, Hydraulic Leveling and IMI 36 in x 8 ft Cross Belt Magnet.

You will find it under stock A4113799 with serial 10048100. Ask us for photos, an inspection slot or a delivered price to your site.

Features & options

  • 2022 US EPA Label
  • Cat C13B 6 Cylinder 12.5 L Diesel Engine
  • Requires Diesel Exhaust Fluid
  • Vibratory Grizzly Feeder Irock 40 in Impact Crusher
  • 24 in Wide Fines Discharge Conveyor
  • 48 in Wide Under Crusher Conveyor
  • 24 in Wide Right Discharge Conveyor
  • 48 in Wide End Discharge Conveyor
  • IMI 36 in x 8 ft Cross Belt Magnet
  • Radio and Cable Remote Control
  • Hydraulic Leveling
  • 19.75 in Triple Grouser Track Shoes

Specifications

Serial Number / VIN10048100
CE MarkNo CE mark found
Hour Meter / Odometer555 hrs
GaugesOperational
Crusher/Screen ControlsRemote does not come out of travel mode so that the conveyor functions will operate. Everything does operate when using the manual valves.
Limited Function CheckThe main components are in place and operational as noted.
Emissions Status2022 US EPA Label
Emission Certification LabelUS EPA certification label
Block HeaterNo
Blow by @ idle (subjective visual observation)Minor
StarterOperational
Oil LeaksNo dripping leaks
Fuel LeaksNo dripping leaks
Cooling System LeaksNo dripping leaks
Limited Function Check (Engine)After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Power Travel Drive System2 Travel Speeds, Travels properly
Limited Function CheckThe hydraulic system was operational.
Feed HopperLength @ top: 200, Width @ top: 100, Grizzly length: 72 in, Width between grizzly bars: 1.5 in
Jaw, Blow Bar and Anvil Wear SurfaceRecently replaced, Jaw width and spacing between jaws 57
Discharge Conveyor Drive MotorOperational
Screen DeckIncline screen
Screen ClothNo screens
Limited Function CheckThe main chassis components functioned when checked without a load.
Left Grouser Height25 mm
Left Track BushingsBushings have not been turned
Right Grouser Height25 mm
Right Track BushingsBushings have not been turned

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.
