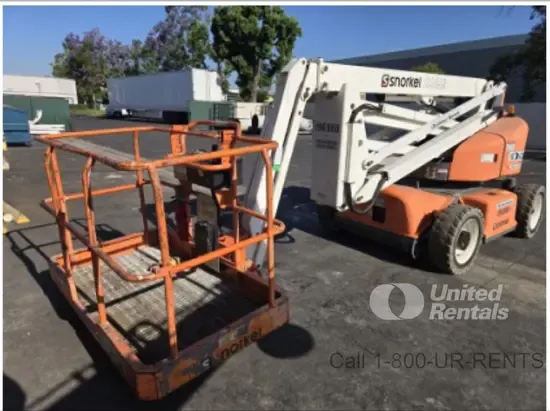

2017 Snorkel A46JE Articulating

Overview

Year
2017
Make
Snorkel
Model
A46JE Articulating
Hours
88 hrs
Category
Aerial Lifts
Stock #
A6107025
Serial #
A46JE-04-170900351
Location
Montclair, CA

Description

This 2017 Snorkel A46JE Articulating aerial lift is working out of Montclair, CA. Meter reading at listing was 88 hours. Machines get moved and demonstrated, so call for an up-to-date number before you buy.

The published figures list a working height of 52.6 ft and a listed weight of 14,300 lbs. Also on the sheet: a stowed drive speed of 3 mph and 6 in of ground clearance. Those are reference values for the model and can vary by configuration, so confirm anything critical with us first.

Fitted equipment includes Onboard Diagnostic System, Battery Powered Electric Motor and Jib Boom with Motion Envelope.

It is listed under stock number A6107025, serial A46JE-04-170900351. Send an inquiry or call to line up an inspection or a freight quote.

Features & options

  • Proportional Controls for Precise Maneuvering
  • Battery Powered Electric Motor
  • Non-Marking Tires
  • Onboard Diagnostic System
  • Emergency Lowering System
  • Swing-Out Component Trays for Easy Maintenance
  • Jib Boom with Motion Envelope
  • Platform Control Box with Diagnostic Display
  • Tilt Alarm with Drive Cut-Out
  • Automatic Battery Charger (Optional)
  • AC Power to Platform (Optional)
  • Foam Filled Tires (Optional)
  • All-Motion Alarm
  • Hour Meter
  • Flashing Beacon (Optional)

Specifications

Maximum Working Height52.6 ft
Maximum Platform Height46 ft
Maximum Horizontal Reach24.9 ft
Lift Capacity500 lbs
Platform Size4 ft x 2.5 ft
Transport Length21.5 ft
Transport Width5.6 ft
Transport Height6.6 ft
Weight14,300 lbs
Drive Speed - Stowed3 mph
Drive Speed - Elevated0.68 mph
Gradeability45%
Turning Radius - Inside1.8 ft
Turning Radius - Outside12.8 ft
Ground Clearance6 in

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in Montclair, CA

Delivered to your site for a flat $550 anywhere in the contiguous US.
