2002 Terex HC110

Overview

Year
2002
Make
Terex
Model
HC110
Hours
10,771 hrs
Category
Cranes
Stock #
A6305090
Serial #
AC3956
Location
Alvarado, TX

Description

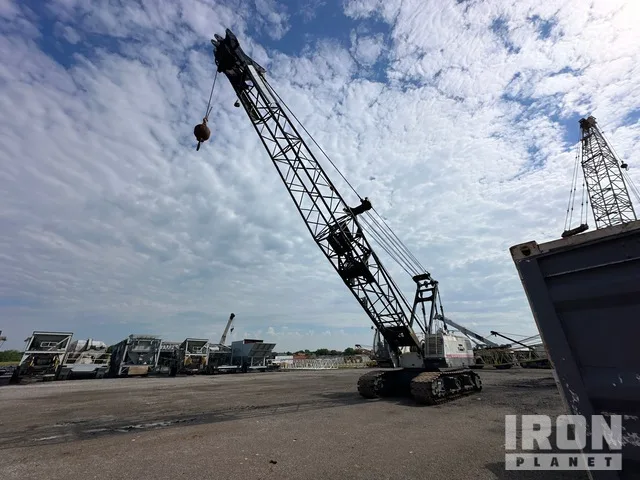

This 2002 Terex HC110 110 ton lattice-boom crawler crane is listed out of Alvarado, TX. Meter reading at listing was 10,771 hours. Machines get moved and demonstrated, so call for an up-to-date number before you buy.

Reference specifications put it at a maximum lift capacity of 110 tons and an engine rated at 270 hp. Alongside that it shows a 140 gal fuel tank and a counterweight of 69,000 lbs. Those are reference values for the model and can vary by configuration, so confirm anything critical with us first.

It is listed with Expandable Width Tracks, IHI Load Moment Indicator and 753 lb 15 ton Overhaul Ball.

Filed as stock number A6305090, serial AC3956. Call or message us for an inspection appointment or delivery pricing.

Features & options

  • Air Conditioner
  • IHI Load Moment Indicator
  • Tier 1
  • 2002 US EPA Label
  • 180 ft Boom
  • Auxiliary Hoist
  • 3 Sheave Hook Block
  • 753 lb 15 ton Overhaul Ball
  • 36 in Smooth Track Shoes
  • Expandable Width Tracks

Specifications

Engine Power270 hp
Displacement414 cu in
Maximum Lift Capacity110 tons
Boom Length230 ft
Jib Length60 ft
Maximum Hoist Height290 ft
Operating Weight263,000 lbs
Counterweight69,000 lbs
Engine ManufacturerCummins
Fuel Capacity140 gal
Drive TypeTracks
Serial Number / VINAC3956
CE MarkNo CE mark found
Hour Meter / Odometer10771 hrs
Exterior LightsNot operational
Load ChartNo
Travel AlarmOperational
HornOperational
Seat BeltsNot equipped
Safety Lock Out/StopOperational
Current Safety ManualNo
Current Operator/Maintenance ManualNo
GlassNo visible damage
Load Moment IndicatorNot operationally checked with a load.
Load ChartsNone found
Oil PressureThe fault indicator shuts off after the engine oil pressure rises.
Warning LightsOperational
GaugesOperational
Drum Rotation IndicatorOperational
Air ConditionerOperational

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in Alvarado, TX

Delivered to your site for a flat $550 anywhere in the contiguous US.
