1977 Link-Belt LS-318

Overview

Year
1977
Make
Link-Belt
Model
LS-318
Hours
7,509 hrs
Category
Cranes
Stock #
A6819351
Serial #
21G7-1209F
Location
Springfield, OR

Description

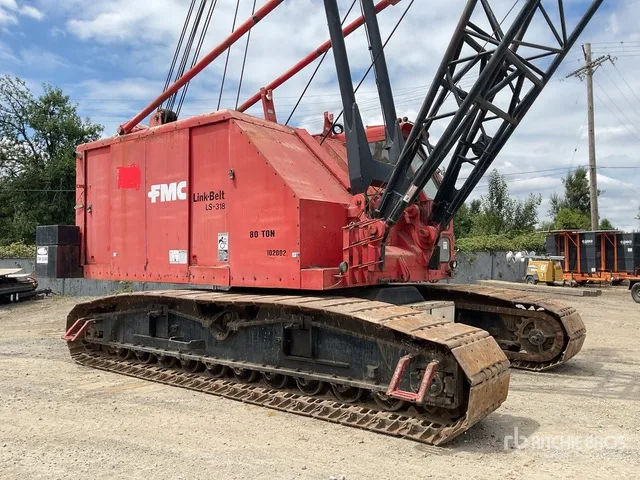

1977 Link-Belt LS-318 80 ton lattice-boom crawler crane, available from our Springfield, OR location. The meter stood at 7,509 hours when the listing was written. That figure can move while machine sits on the yard, so ask us for a current one before you commit.

Manufacturer reference figures give a maximum lift capacity of 80 tons and an engine rated at 131 hp. It also lists a counterweight of 29,000 lbs and a top travel speed of 1 mph. Reference values vary with configuration - check the ones that matter to your job before you buy.

Options listed with this unit include Manual Throttle Control, Manual Control Levers and Basic Analog Gauges for Monitoring.

Our stock number is A6819351 and the serial is 21G7-1209F. Call with your questions, or ask for a delivered price to your job.

Features & options

  • Manual Control Levers
  • Open Operator Cab
  • Basic Analog Gauges for Monitoring
  • Mechanical Boom and Jib Adjustment
  • Standard Safety Belts
  • Non-slip Operator Platform
  • Steel-Constructed Chassis for Durability
  • Simple Hydraulic System for Reliability
  • Manual Throttle Control
  • Standard Counterweights for Stability

Specifications

Engine Power131 hp
Displacement276 cu in
Maximum Lift Capacity80 tons
Boom Length180 ft
Max Line Pull45,000 lbs
Operating Weight110,000 lbs
Counterweight29,000 lbs
Max Travel Speed1 mph
Fuel Capacity100 gal
Serial Number / VIN21G7-1209F
CE MarkNo CE mark found
Hour Meter / Odometer7509 hrs
Exterior LightsNot operational
Safety Certification LabelThere is a safety certification label with a date of 5-1-14
Safety Certification ReportSafety Certification Report Not Available
Load ChartYes
HornOperational
Seat BeltsNot equipped
Current Safety ManualYes
Current Operator/Maintenance ManualYes
Load Moment IndicatorNot operationally checked with a load.
Load ChartsPosted on cab wall, Chart book in cab
Oil PressureThe gauge registers in the operating range.
GaugesOperational
Drum Rotation IndicatorOperational
HeaterOperational
Limited Function CheckThe main components are in place and operational as noted.
EngineUS EPA Label
Blow-by (subjective visual observation)No noticeable vapor or pressure
StarterOperational

Specifications are manufacturer reference values and may vary by configuration. Please confirm critical specs before purchase.

Located in Springfield, OR

Delivered to your site for a flat $550 anywhere in the contiguous US.
